06_Grid

GridDemo.cpp, h

#include "stdafx.h"
#include "GridDemo.h"

void GridDemo::Initialize()
{
	shader = new Shader(L"06_Grid.fxo");

	vertexCount = (width + 1) * (height + 1);
	vertices = new Vertex[vertexCount];

	for (UINT y = 0; y <= height; y++)
	{
		//x축(가로)부터 정의 (삼각형 단위)
		for (UINT x = 0; x <= width; x++)
		{
			UINT index = (width + 1) * y + x;

			vertices[index].Position.x = (float)x;
			vertices[index].Position.y = 0.0f;
			vertices[index].Position.z = (float)y;
		}
	}

	//Create VertexBuffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(Vertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA data = { 0 };
		data.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &data, &vertexBuffer));
	}

	//Set Index Subresource
	indexCount = width * height * 6;
	indices = new UINT[indexCount];

	UINT index = 0;
	for (UINT y = 0; y < height; y++)
	{
		for (UINT x = 0; x < width; x++)
		{
			indices[index + 0] = (width + 1) * y + x;
			indices[index + 1] = (width + 1) * (y + 1) + x;
			indices[index + 2] = (width + 1) * y + x + 1;
			indices[index + 3] = (width + 1) * y + x + 1;
			indices[index + 4] = (width + 1) * (y + 1) + x;
			indices[index + 5] = (width + 1) * (y + 1) + x + 1;

			index += 6;
		}
	}

	//Create IndexBuffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA data = { 0 };
		data.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &data, &indexBuffer));
	}

	D3DXMatrixIdentity(&world);
}

void GridDemo::Destroy()
{
	SafeDelete(shader);
	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);
}

void GridDemo::Update()
{
	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());
}

void GridDemo::Render()
{
	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	static UINT Pass = 0;
	ImGui::InputInt("Pass", (int*)&Pass);
	Pass %= 2;

	shader->DrawIndexed(0, Pass, indexCount);
}

#pragma once
#include "Systems/IExecute.h"

class GridDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {};
	virtual void Render() override;
	virtual void PostRender() override {};
	virtual void ResizeScreen() override {};

private:
	struct Vertex
	{
		Vector3 Position;
	};

private:
	Shader* shader;

	UINT width = 10, height = 10;

	UINT vertexCount;
	Vertex* vertices;
	ID3D11Buffer* vertexBuffer;

	UINT indexCount;
	UINT* indices;
	ID3D11Buffer* indexBuffer;

	Matrix world;
};

---

06_Grid.fx

matrix World, View, Projection;

struct VertexInput
{
    float4 Position : Position;
};

struct VertexOutput
{
    float4 Position : SV_Position;
};

RasterizerState RS
{
    FillMode = WireFrame;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    return float4(1, 0, 0, 1);
}

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

    pass P1
    {
        SetRasterizerState(RS);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

}

---

Context.cpp

#include "Framework.h"
#include "Context.h"
#include "Viewer/Viewport.h"
#include "Viewer/Perspective.h"

Context* Context::instance = NULL;

Context * Context::Get()
{
	//assert(instance != NULL);

	return instance;
}

void Context::Create()
{
	assert(instance == NULL);

	instance = new Context();
}

void Context::Delete()
{
	SafeDelete(instance);
}

Context::Context()
{
	D3DDesc desc = D3D::GetDesc();

	perspective = new Perspective(desc.Width, desc.Height);
	viewport = new Viewport(desc.Width, desc.Height);


	position = D3DXVECTOR3(0, 0, -10);
	D3DXVECTOR3 forward(0, 0, 1);
	D3DXVECTOR3 right(1, 0, 0);
	D3DXVECTOR3 up(0, 1, 0);

	D3DXMatrixLookAtLH(&view, &position, &(position + forward), &up);
}

Context::~Context()
{
	SafeDelete(perspective);
	SafeDelete(viewport);
}

void Context::ResizeScreen()
{
	perspective->Set(D3D::Width(), D3D::Height());
	viewport->Set(D3D::Width(), D3D::Height());
}

//여기에 카메라 이동 관련
void Context::Update()
{
	ImGui::SliderFloat("EyeX", &position.x, 0, 128);
	ImGui::SliderFloat("EyeY", &position.y, -20, 20);
	ImGui::SliderFloat("EyeZ", &position.z, -128, 128);

	D3DXVECTOR3 forward(0, 0, 1);
	D3DXVECTOR3 right(1, 0, 0);
	D3DXVECTOR3 up(0, 1, 0);

	D3DXMatrixLookAtLH(&view, &position, &(position + forward), &up);
}

void Context::Render()
{
	viewport->RSSetViewport();
}

D3DXMATRIX Context::Projection()
{
	D3DXMATRIX projection;
	perspective->GetMatrix(&projection);

	return projection;
}

---

실행



---

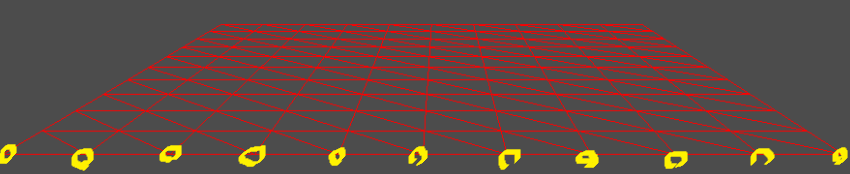

vertexCount = (width + 1) * (height + 1); 부분에서 각각 +1씩 하는 이유는

10 * 10 Grid를 그려본다고 치면 아래 그림에 있는 노랑색 동그라미의 갯수를 새면 11개의 정점이 필요함
